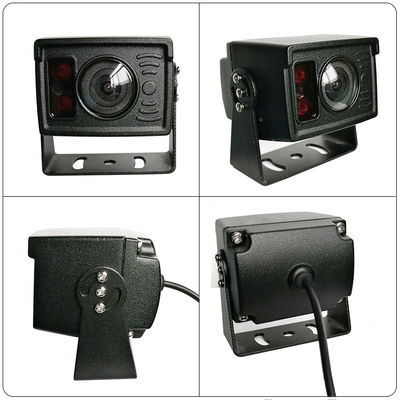

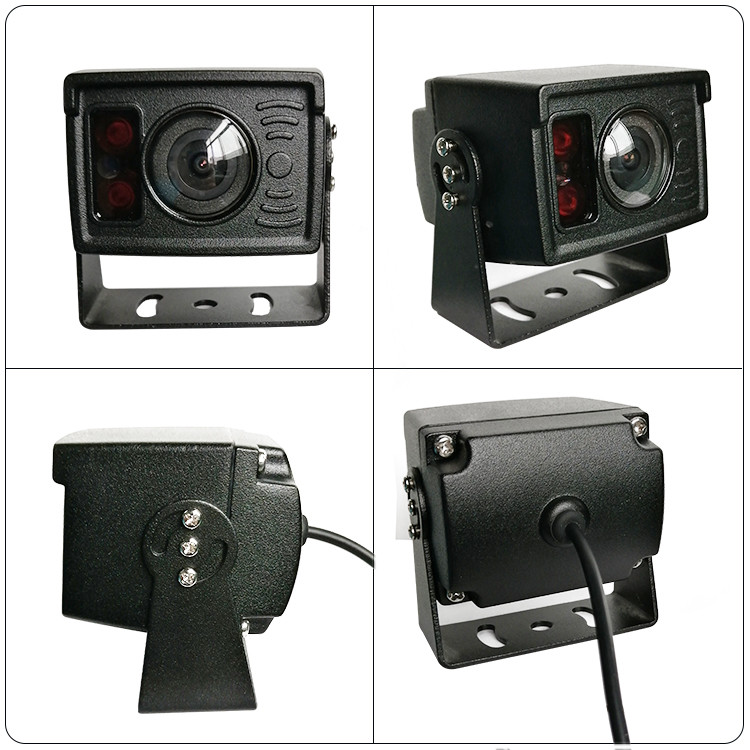

كاميرات مراقبة الشاحنات ضوء النجوم رؤية ليلية AHD طاقة منخفضة مراقبة عكسية مقاومة للماء
بعد تثبيت كاميرا 8MP يمكن أن يصل FOV من الكاميرا الرئيسية التي تواجه الأمامية إلى 120 درجة والتي قد لا تكون ضرورية بعد الآن مسافة الكشف حوالي 60 متر
الكاميرا المحيطة: mainly installed around the vehicle body usually using 4 - 8 cameras which can be divided into forward facing fisheye camera left facing fisheye camera right facing fisheye camera and rear facing fisheye camera Used for displaying panoramic panoramic view function as well as visual perception and object detection integrating parking function The commonly used color matrix is RGGB as there is a need for color restoration
كاميرا الرؤية الخلفية: عادة ما يتم تركيبها على صندوق السيارة بشكل رئيسي لمساعدة الوقوف زاوية مجال الرؤية بين 120 و 140 درجة و مسافة الكشف حوالي 50 متر

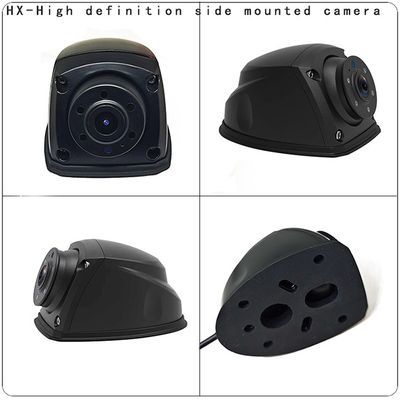

الكاميرا الأمامية الجانبية installed at the B - pillar or vehicle rearview mirror the field of view angle of this camera is generally 90 ° - 100 ° and the detection distance is about 80 meters The main function of this camera is to detect lateral vehicles and bicycles
كاميرا الرؤية الجانبية والخلفية generally installed at the front fender of the vehicle the field of view angle of this camera is generally around 90 ° and the detection distance is also about 80 meters It is mainly used for scene applications such as vehicle lane changing and merging into other roads
مُدمج في الكاميرا: تستخدم بشكل رئيسي لمراقبة حالة السائق وتحقيق تذكيرات التعب ووظائف أخرى
Among them the price of front view cameras is relatively high and the current market price is between 300 and 500 yuan The prices of other cameras are around 150 - 200 yuan Some places an ISP image processing chip on the camera side to transmit the processed signal to the host while others do not place an ISP chip and use the built - in ISP chip on the host side for image processing This way the heat dissipation on the camera side will be much better and the radiation will be reduced
