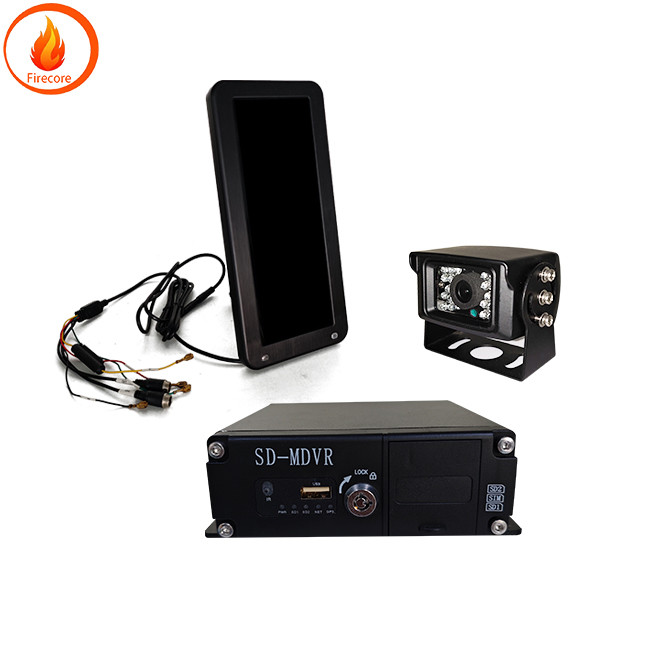

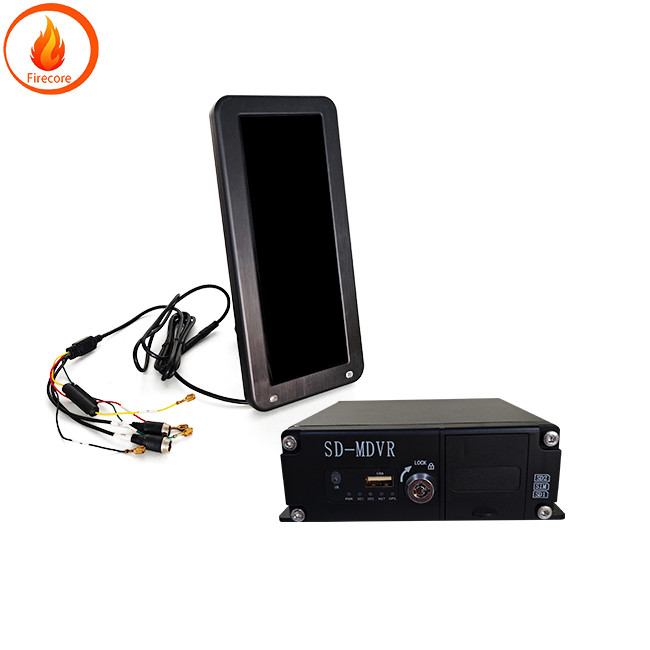

نظام مراقبة كاميرات المركبة جهاز مراقبة متنقل
معايير المنتج:
العرض:
1. الحجم: 12. 3 " ((8: 3)
الدقة: 1920 * 720P
الضوء الخلفي: سطوع LED: 850cd / m2
التباين: 800: 1
المدى المنظور: فوق 85 درجة أسفل 85 درجة
مصدر الطاقة: DC9 - 36 فولت
تحكم أجهزة التشغيل الأساسية: إعدادات تشغيل الفيديو إعدادات عرض الفيديو اختيار اللغة إعدادات عكسية إعدادات النظام
قوة 5 واط
9. مدخل الإشارة: 720P / 960P / 1080P / CVBS مدخل مختلط
10 ، تنسيق الملفات: AVI / JPG
ذاكرة: يدعم بطاقة TF 256GB
ضغط الفيديو:264
13 ، دقة التسجيل: 720P/960P/1080P/CVBS
14 ، لغات النظام: الصينية الإنجليزية
15 شاشة عرض: شاشة واحدة / شاشة مزدوجة / 5: 5 / 6: 4 / 7: 3 عملية عرض في وقت واحد CHI CH2 1080P
16 ، التحكم بالشفرة: شفرة 1 طريق
شكل الفيديو: التبديل التلقائي PAL/NTSC
كاميرا عالية الجودة:
الدقة: AHD 720P / 960P/1080P
الزاوية العريضة الأفقية: 90 - 150
درجة مقاومة للماء: IP68
نحن مصنعون محترفون للبحث والتطوير والإنتاج ومراقبة المركبات
آلة تسجيل الفيديو للسيارة كاميرا للسيارة كاميرا usb لسيارة العرض كاميرا usb
الرجاء الاتصال بنا عن طريق البريد الإلكتروني:firecore1688@163.com
محطة مراقبة عن بعد مثبتة على المركبة
The vehicle mounted remote monitoring terminal also known as the vehicle mounted DVR adopts a professional vehicle mounted design that is suitable for automotive power supply and adopts high seismic resistance design It combines mechanical shock absorption electronic shock absorption and software seismic resistance patents and uses a removable ordinary 2.5 - inch hard drive It has multiple modes of security monitoring and recording functions manual timed alarm linkage and fast and convenient query and playback modes The product has a high - speed USB 2.0 interface and broadband network interface which facilitates data backup The vehicle mounted intelligent terminal can be used independently and can also utilize the extended built - in GPS global positioning system and 3G communication module to construct a wireless video monitoring management system for remote scheduling management and real - time monitoring As an extended application in car DVR can also provide functions such as mileage and station name prompts enriching operational applications Mileage and station name prompts in addition to the sound station announcement function the onboard terminal also provides visual mileage and station name prompts displaying the progress of the vehicle on the route through the display inside the vehicle The main functions and architecture of the software platform The onboard monitoring terminal can independently complete the video recording and recording monitoring function on the vehicle, and can also be expanded and configured into a system with wireless network monitoring and management improving and enhancing the regulatory ability of the management department on vehicles and providing more timely monitoring of key areas and routes
The line resembling the head penetrates into the car through the gap of the license plate light and is connected to the power supply and video extension cable of the reversing light This type of installation of reversing camera is a popular one nowadays with a more concealed appearance and easier installation Another method is to drill holes for installation and embed them into the interior of the bumper The advantage of this method is that there is no need to drill holes on the metal parts behind the car Because the bumper is made of plastic the camera wiring is relatively easy The third step is to connect the power cord of the camera to the power cord of the rear reversing light then connect the video cord of the camera to the video extension cable The other end of the video extension cable is connected to the AV input of the car DVD display Finally restore the battery power start the car engage reverse gear and you can see the reverse image on the car display
